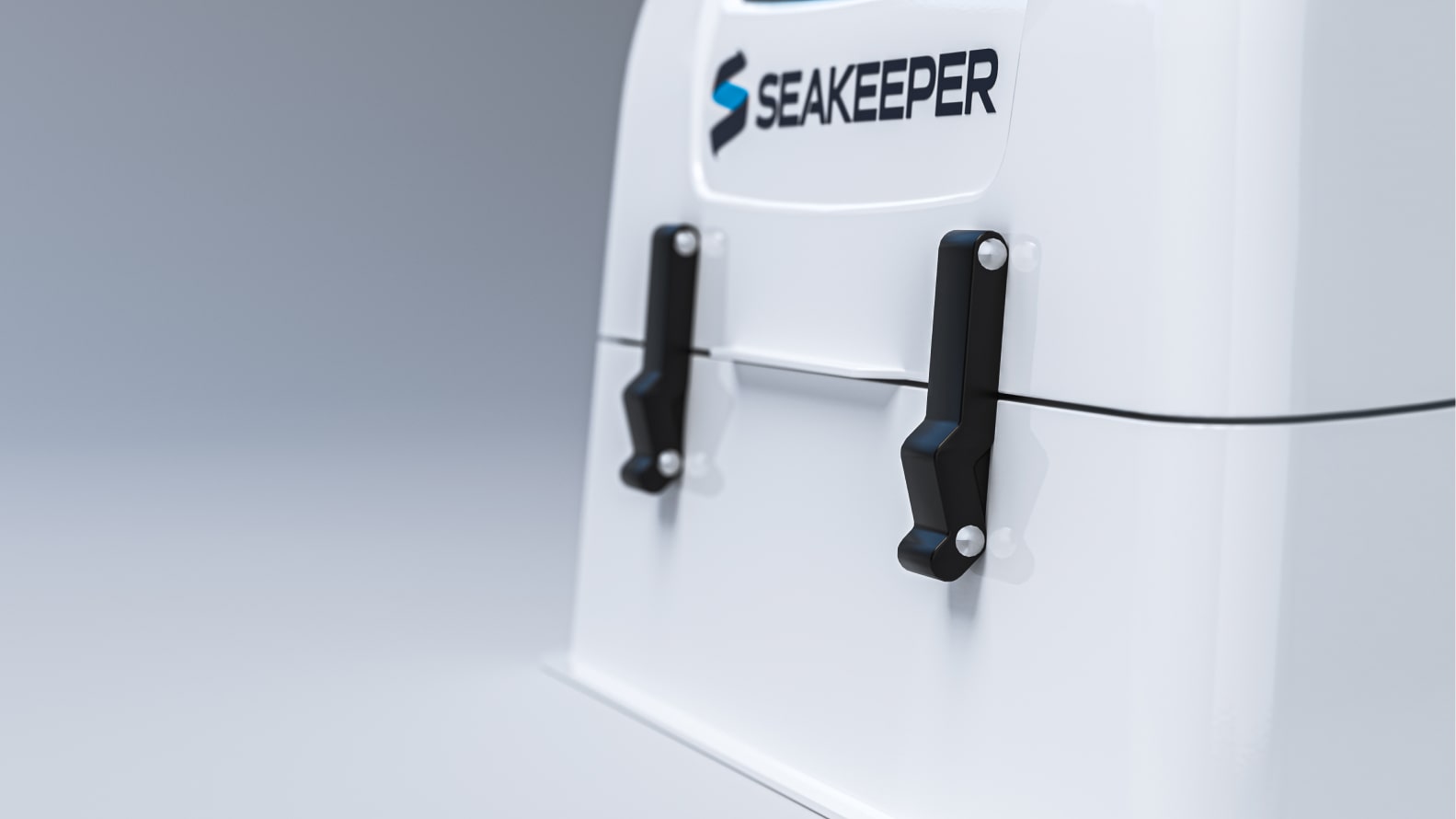

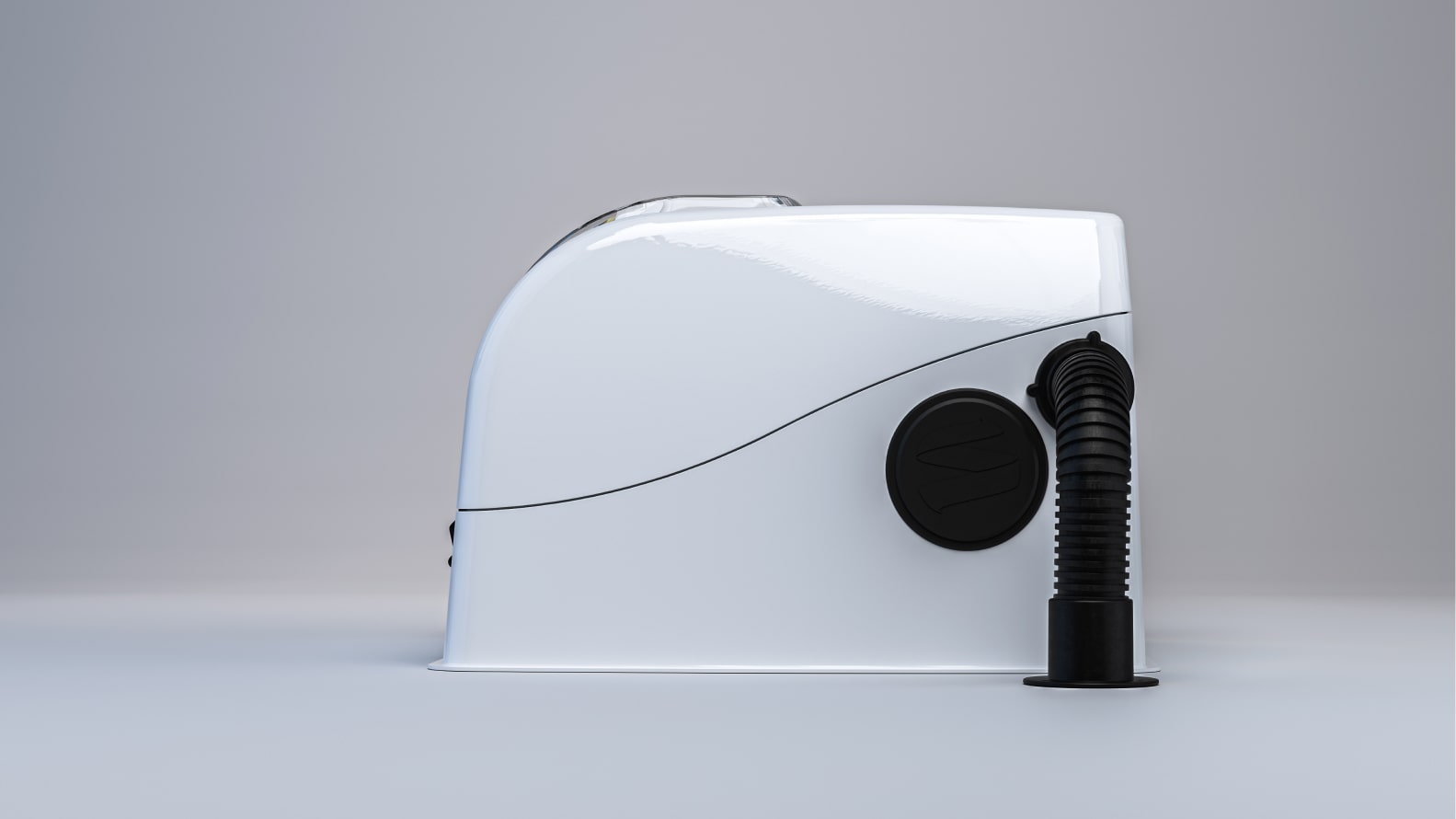

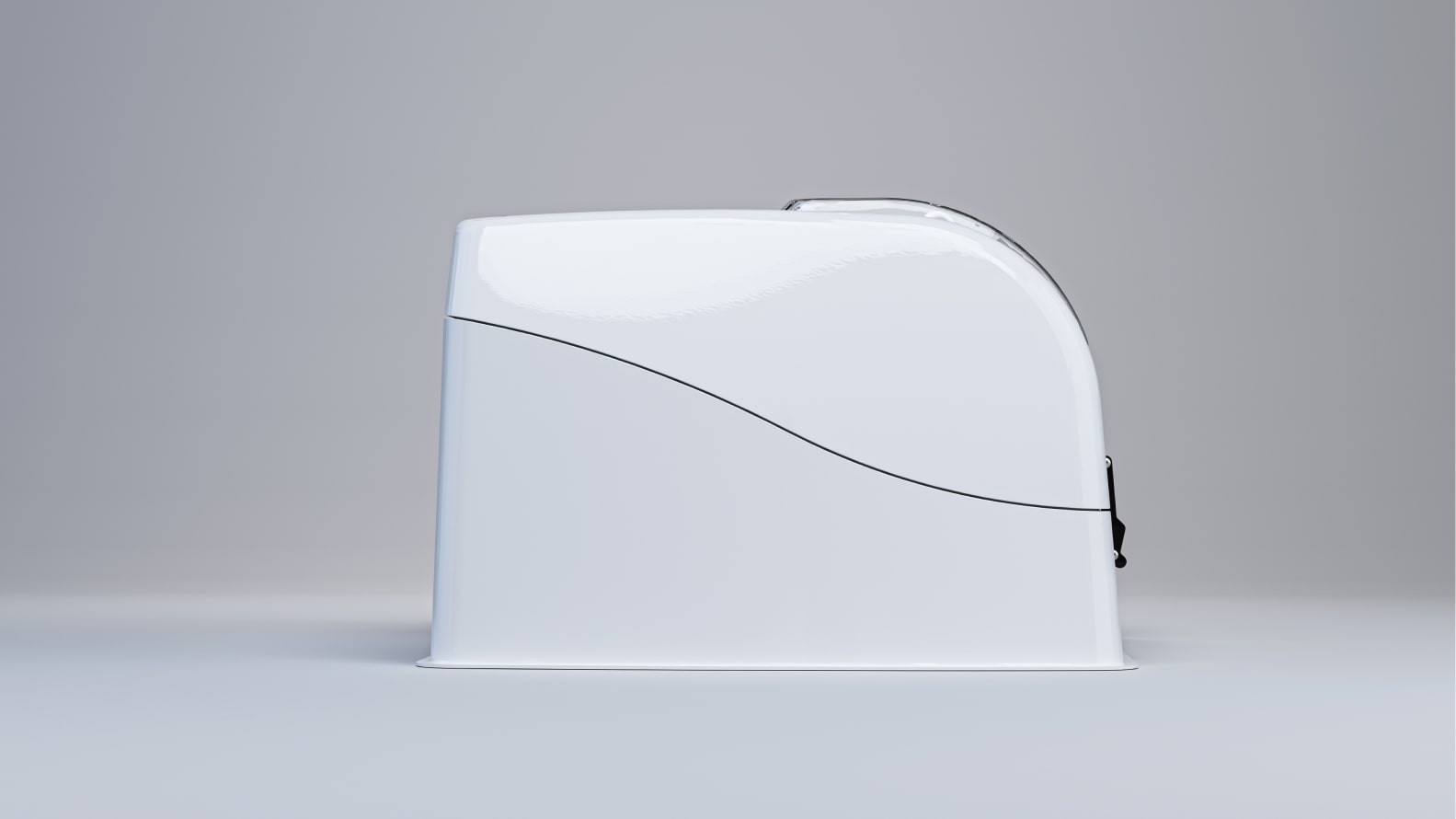

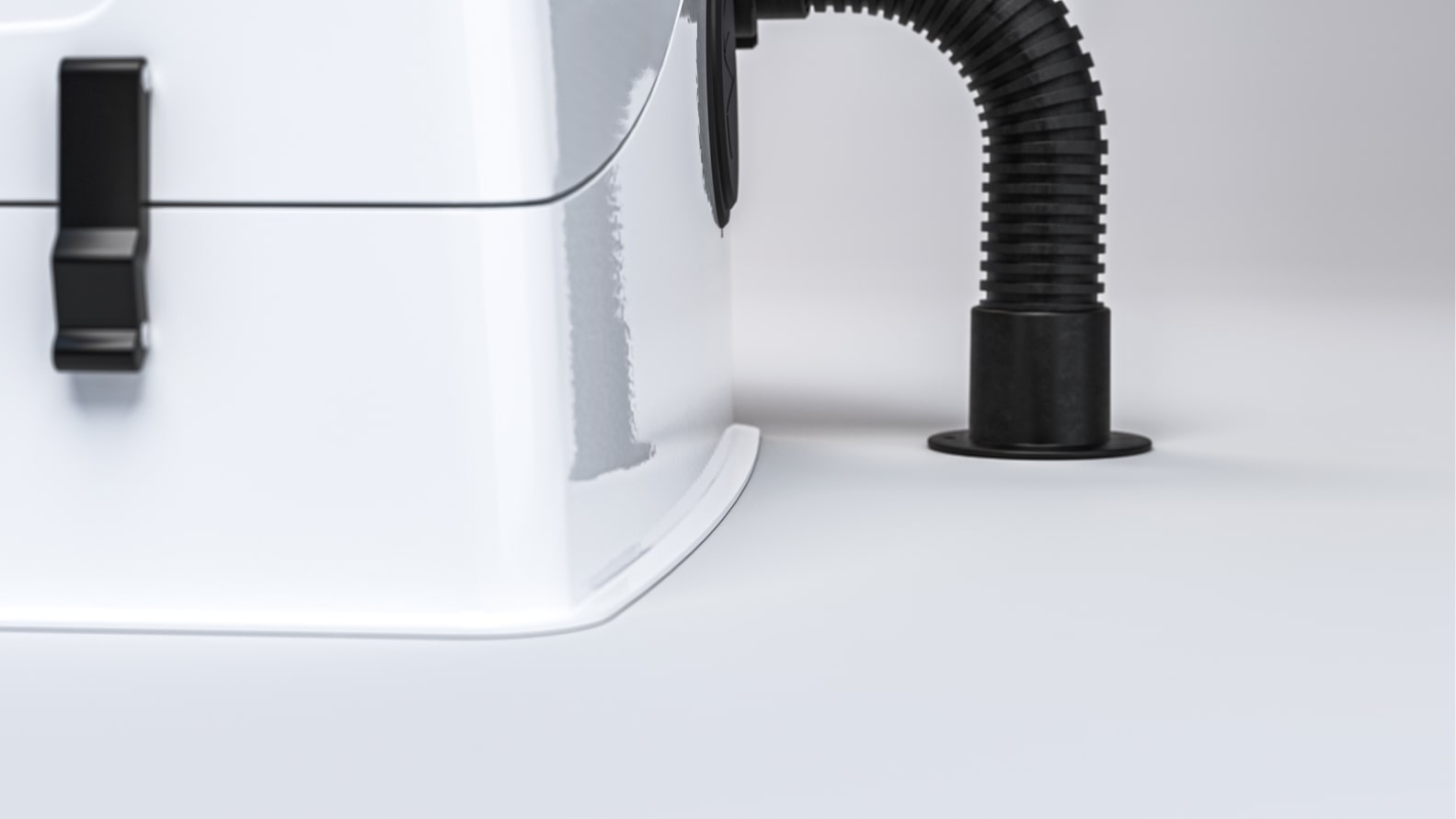

SEAKEEPER 1
~23'-30'
×
![Popup Image]()
Description

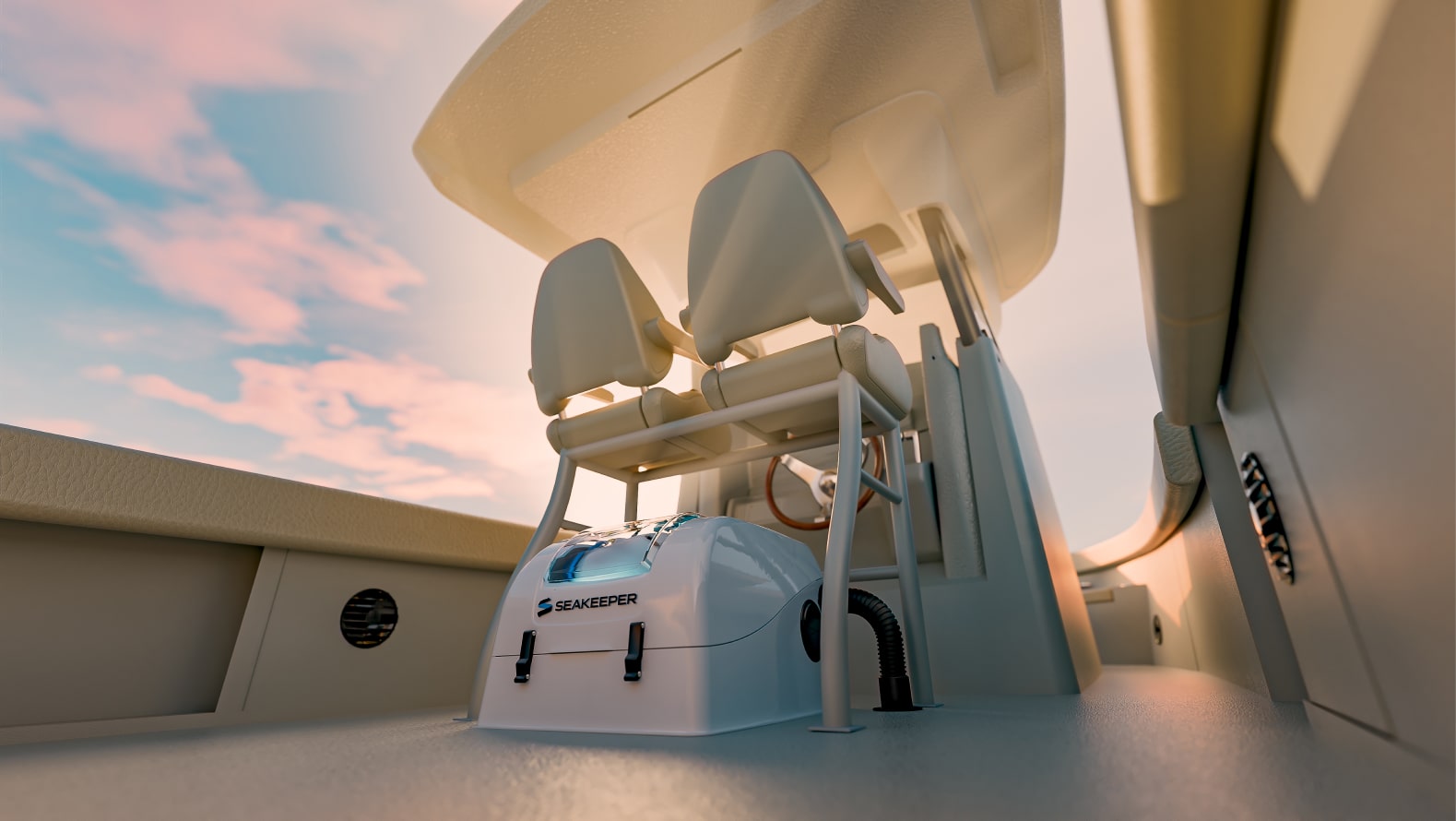

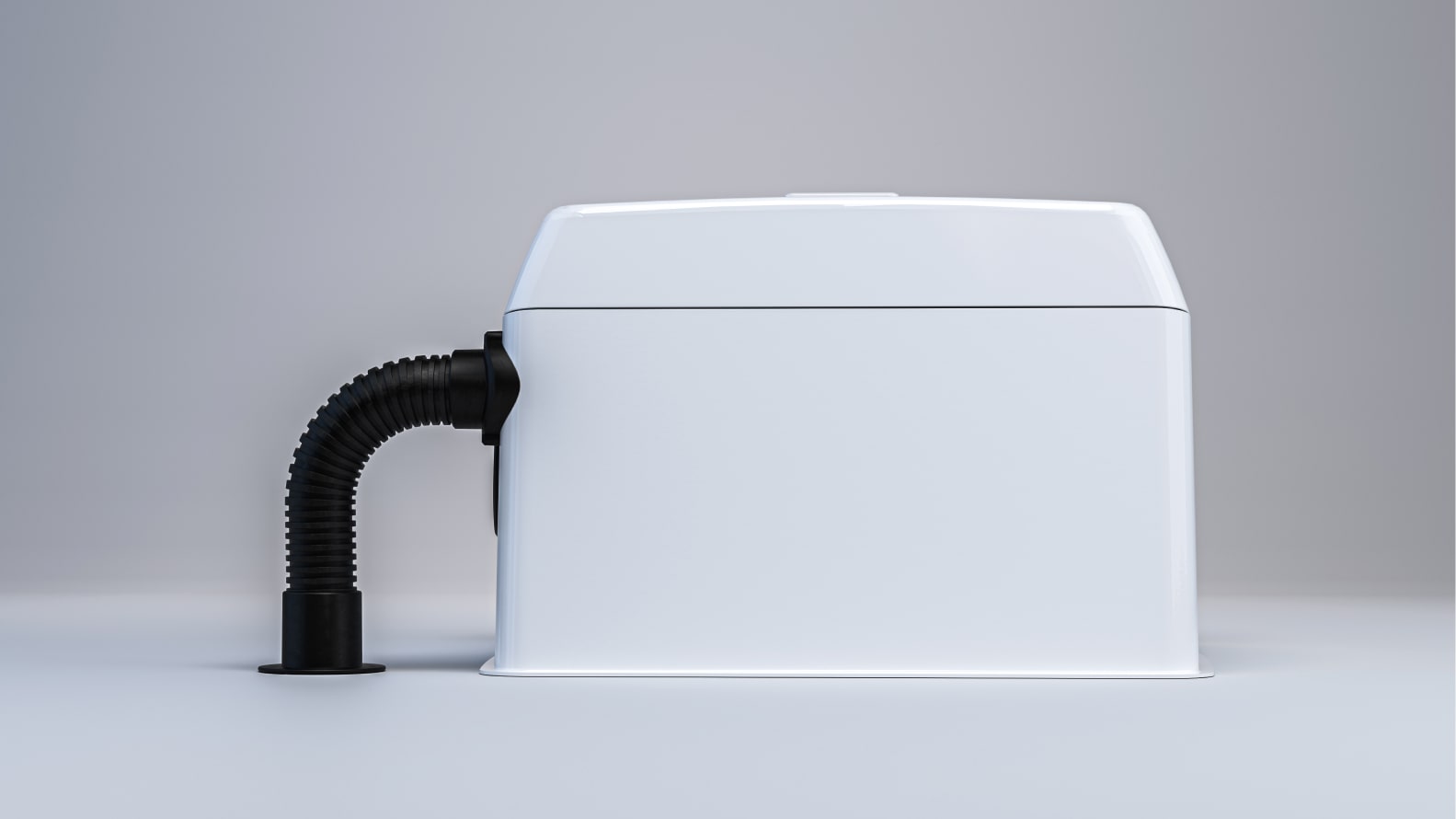

To bring stabilization to boats as small as 23 feet, we knew we had to break the mold. The new Seakeeper 1 features a flush mount design for easier installation, runs exclusively on 12V DC power, and can be installed virtually anywhere on board.
Specifications
- Weight: 365 lbs (165 kg)
- Brand: Seakeeper
-
Dimensions:
22.9 L × 23.6 W × 15.9 H (inches)
0.582 L × 0.598 W × 0.403 H (meters) - Innovative Cooling System: Patented cooling allows ultra-high flywheel speeds for maximum performance in a compact, lightweight design.

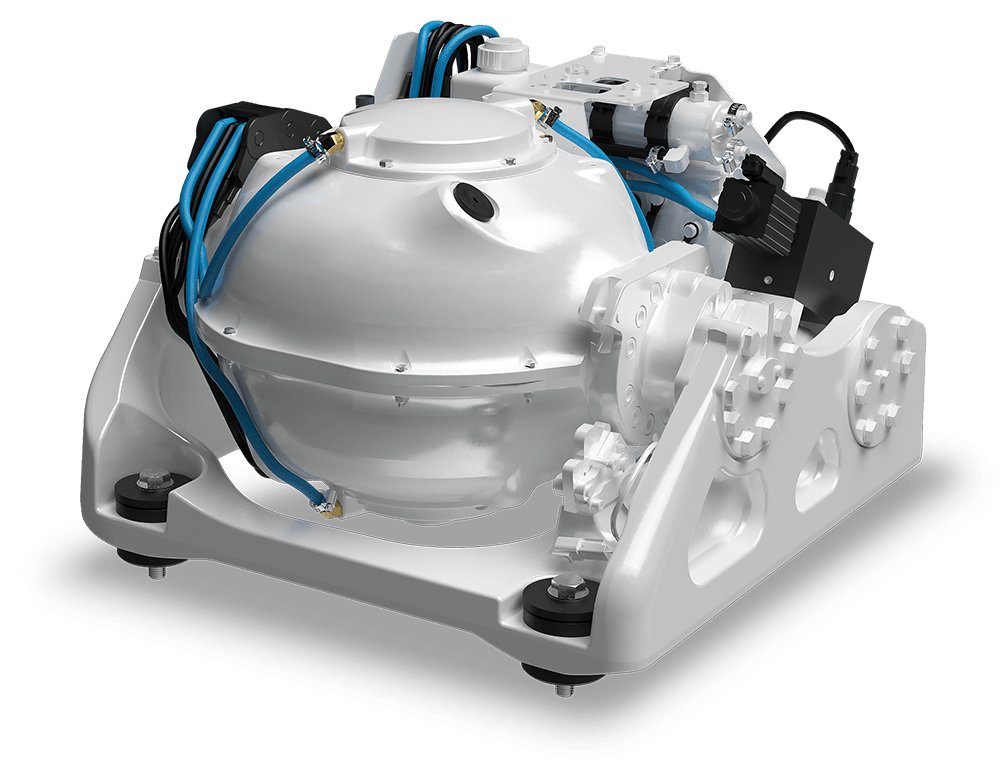

- Vacuum Sealed: Vacuum encapsulation enables faster spin, reduces weight and power usage, and protects components from the marine environment.
- Active Control: Actively optimizes gyro torque for superior stabilization at all speeds and in all sea conditions.
- Small & Lightweight: Weighs only a small fraction of the boat’s displacement.
- Eliminate Boat Roll: Reduces up to 95% of boat roll, minimizing fatigue and seasickness.

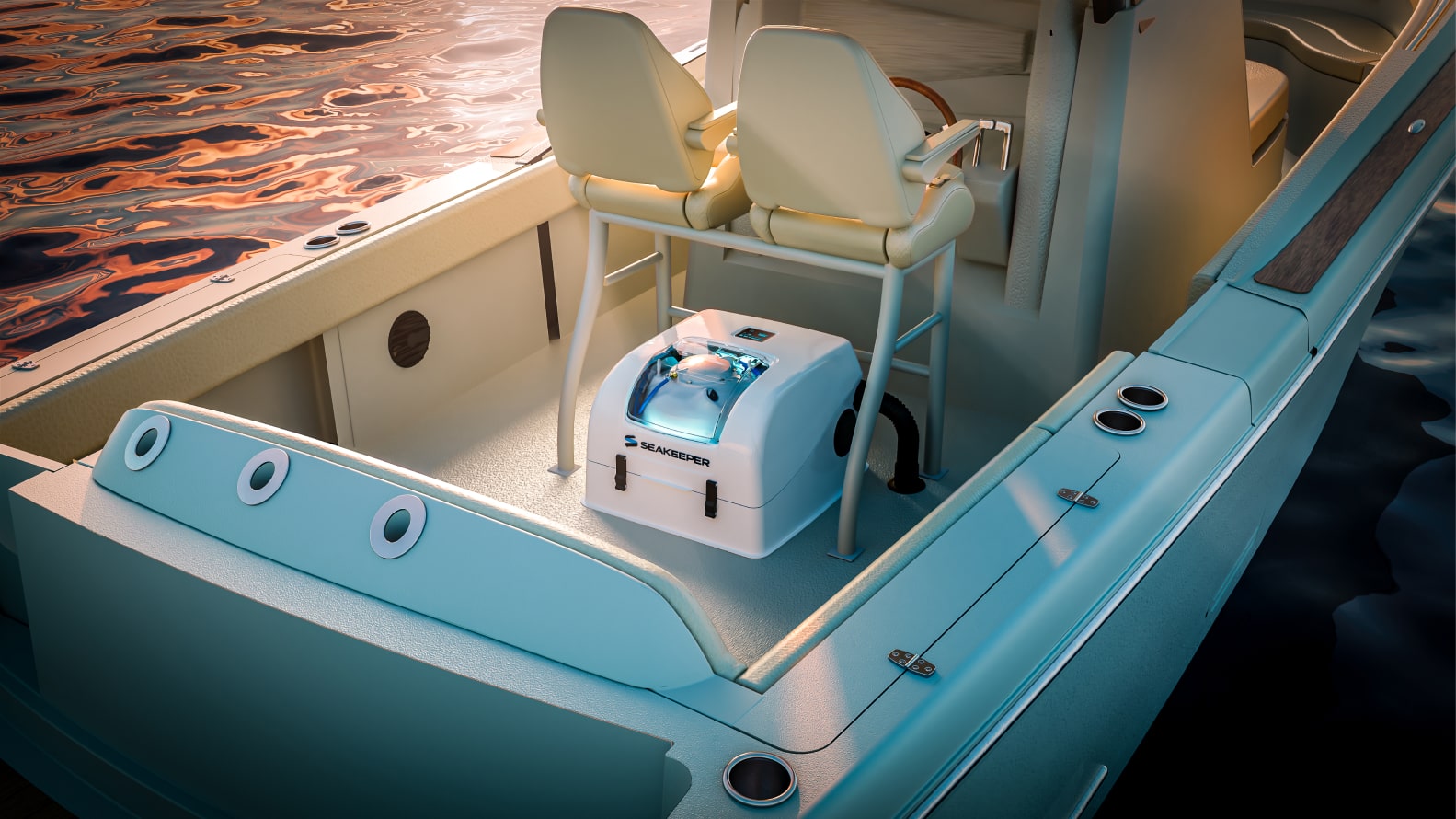

- Flexible & Efficient: Fully internal system that can be installed almost anywhere on board.
Intuitive Dash Display
Control your Seakeeper with the push of a button on our new user-friendly dash display. Not only is the display simple to use, but it integrates into your existing dash units for optimal performance.
Additional Specifications
Performance
- Max Rated Speed: 9,750 RPM
- Angular Momentum at Max Rated RPM: 1,000 N-M-S
- Spool-up Time to Max Rated RPM: 35 minutes (9,750 RPM)
- Spool-up Time to Stabilization: 18 minutes (7,310 RPM)
Power Consumption
- Spool-Up Power: 600 Watts Max
- Spool-Up Power Input: 12 VDC @ 50 Amps Max
- Operating Power: 225 – 600 Watts (Sea State Dependent)
- DC Power Input: 12 VDC @ 19–50 Amps
- Control Power: N/A
- Control Power Input: N/A
- Over Current Protection (Pump Rating): 12 VDC @ 15 Amps Max
Dimensions & Environment
- Weight: 365 lbs (166 kg)
- Envelope Dimensions: 22.9 L × 23.6 W × 15.9 H (Inches)
- Envelope Dimensions: 0.582 L × 0.598 W × 0.403 H (Meters)
- Noise Output: ~64 dB at 1 meter
- Seawater Supply to Heat Exchanger: 2 GPM (7.6 LPM) Min
- Seawater Supply to Heat Exchanger: 4 GPM (15.1 LPM) Max
- Ambient Air Temperature: 32° – 140° F (0° – 60° C)

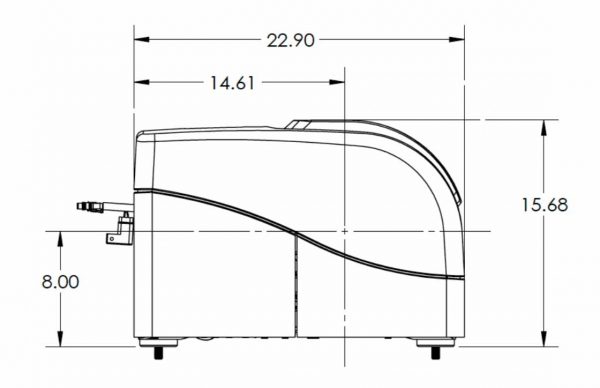

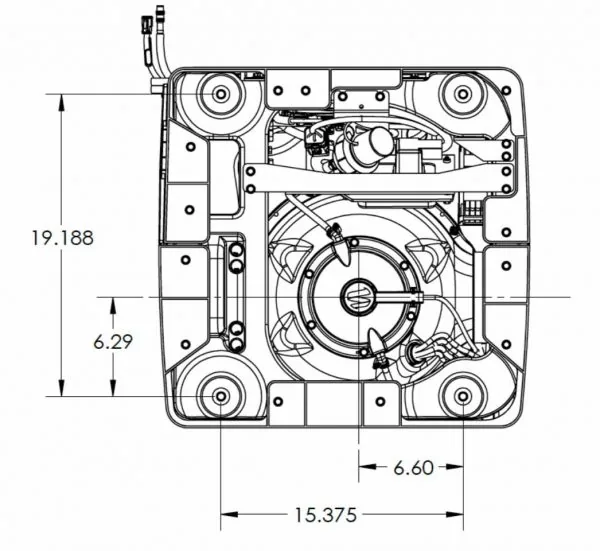

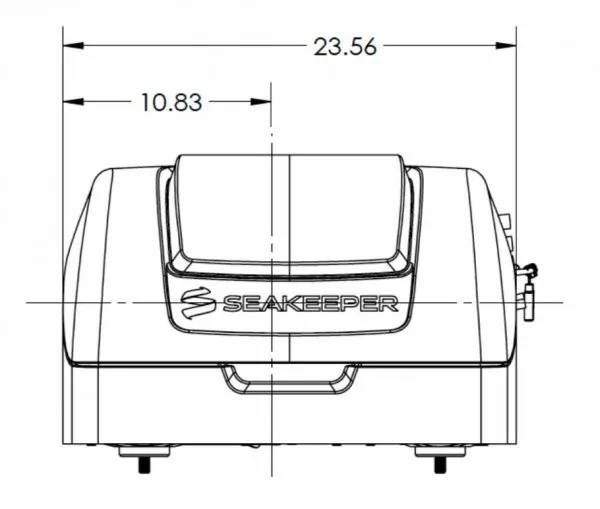

Drawings
