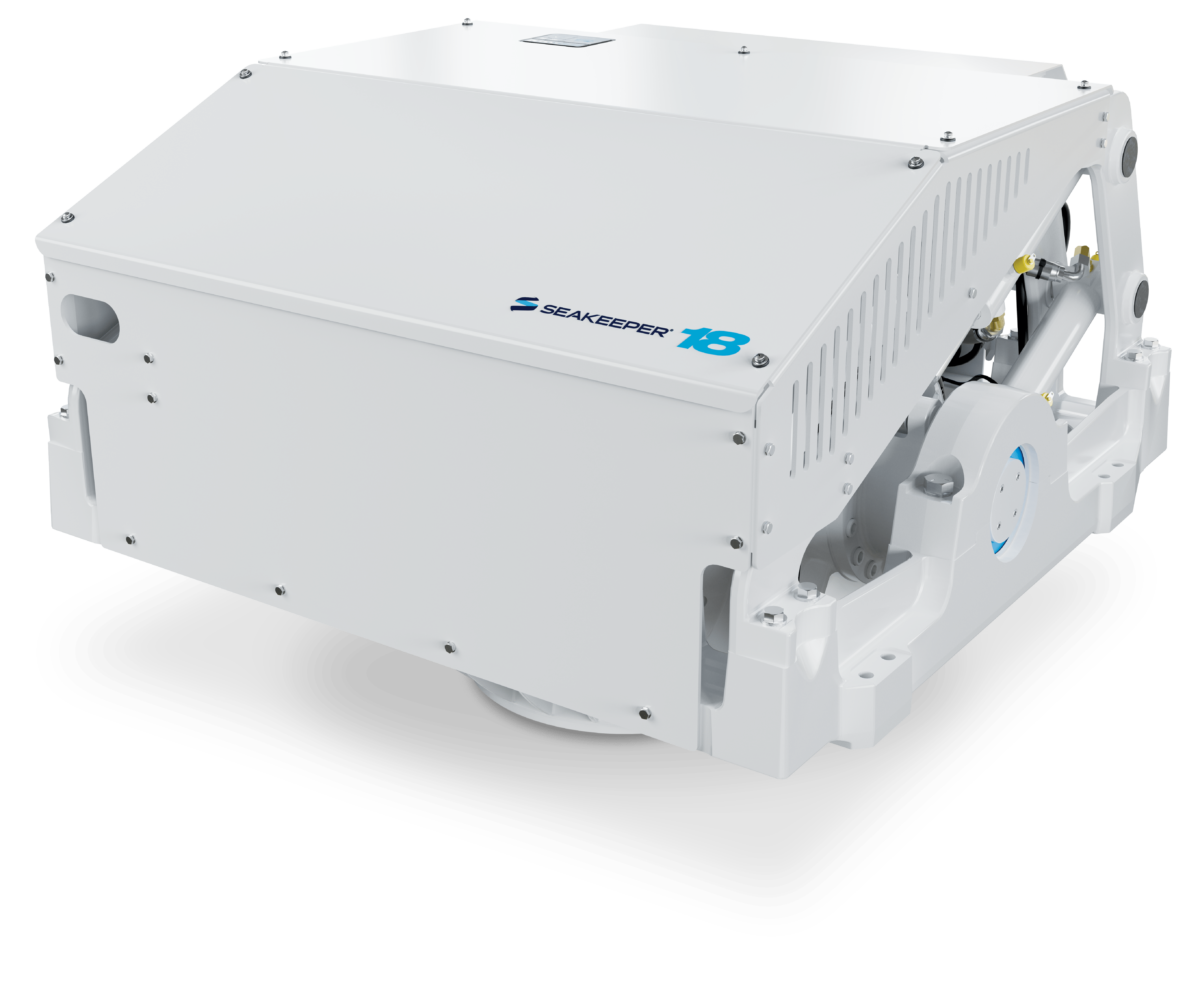

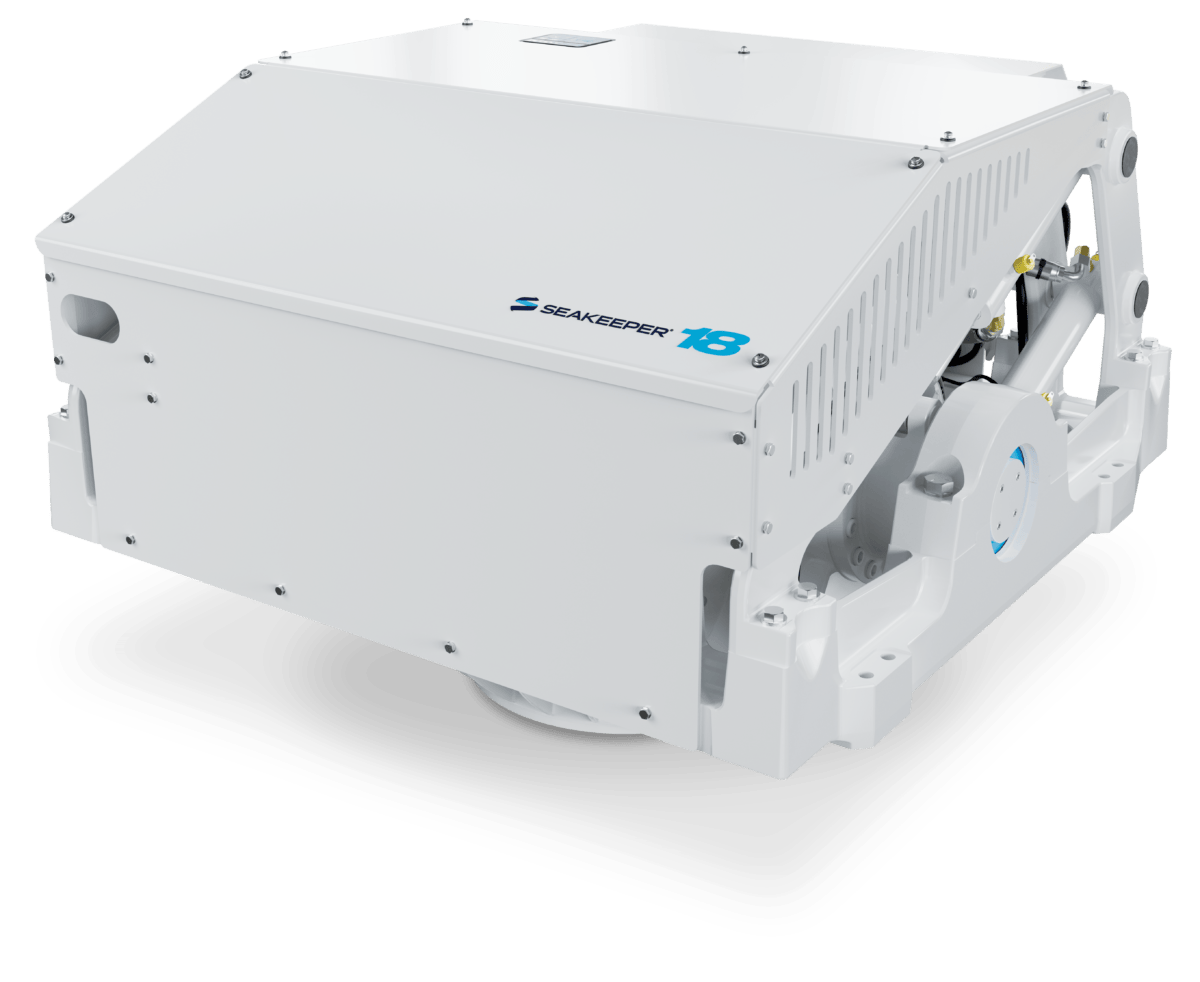

Seakeeper 18
~60'-75'
×
![Popup Image]()
Description
Crafted for ~60-75 foot boats, up to 56 tons, the Seakeeper 18 is designed to eliminate up to 95% of boat roll. The Seakeeper 18 is completely internal, requires only modest electrical power, and can be installed virtually anywhere on board.
Specifications
- Weight: 2,460 (1,116 kg)
-
Dimensions:
42.5 L x 43.2 W x 33.6 H (inches)
1.078 L x 1.096 W x 0.854 H (meters) - Innovative Cooling System: Patented cooling enables higher flywheel speeds for maximum performance in a compact, lightweight design.
- Vacuum Sealed: Vacuum encapsulation allows faster spin, reduced weight and power use, while protecting core components.
- Active Control: Actively manages gyro torque for effective stabilization at all speeds and sea conditions.
- Small & Lightweight: Weighs only a small fraction of the boat’s displacement.
- Eliminate Boat Roll: Eliminates up to 95% of boat roll, reducing fatigue, anxiety, and seasickness.
- Flexible & Efficient: Simple installation, quiet operation, and no generator necessary.
Intuitive Dash Display
Control your Seakeeper with the push of a button on our new user-friendly dash display. Not only is the display simple to use, but it integrates into your existing dash units for optimal performance.
Additional Specifications
Performance
- Max Rated Speed: 6,150 RPM
- Angular Momentum at Max Rated RPM: 18,000 N-M-S
- Spool-up Time to Max Rated RPM: 42 minutes (6,150 RPM)
- Spool-up Time to Stabilization: 27 minutes (4,613 RPM)
Power Consumption
- Spool-Up Power: 3,700 Watts Max
- Operating Power: 1,425 – 3,000 Watts (Sea State Dependent)
- AC Power Input: 30 Amps @ 208 – 230 VAC, 50/60 Hz, Single Phase
- Control Power: 240 Watts
- Control Power Input: 24 VDC @ 10 Amps Max
- Seawater Pump Power Input / Over Current Protection: 24 VDC @ 10 Amps Max
Dimensions & Environment
- Weight: 2,460 lbs (1,116 kg)
- Envelope Dimensions: 42.5 L × 43.2 W × 33.6 H (Inches)
- Envelope Dimensions: 1.078 L × 1.096 W × 0.854 H (Meters)
- Noise Output: ~68 dB at 1 meter
- Seawater Supply to Heat Exchanger: 4 GPM (15.1 LPM) minimum
- Seawater Supply to Heat Exchanger: 8 GPM (30.3 LPM) maximum
- Ambient Air Temperature: 32° – 140° F (0° – 60° C)

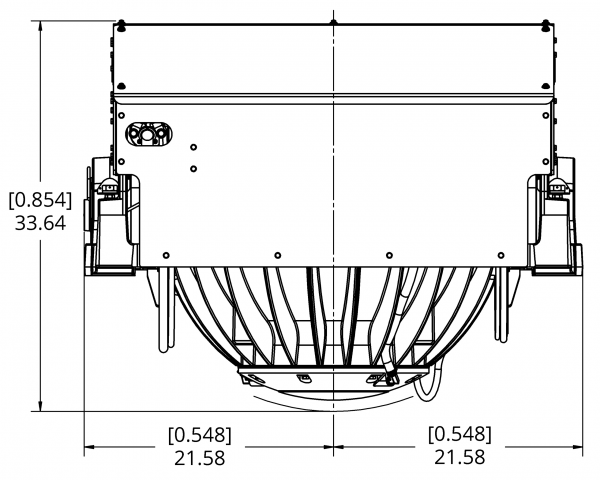

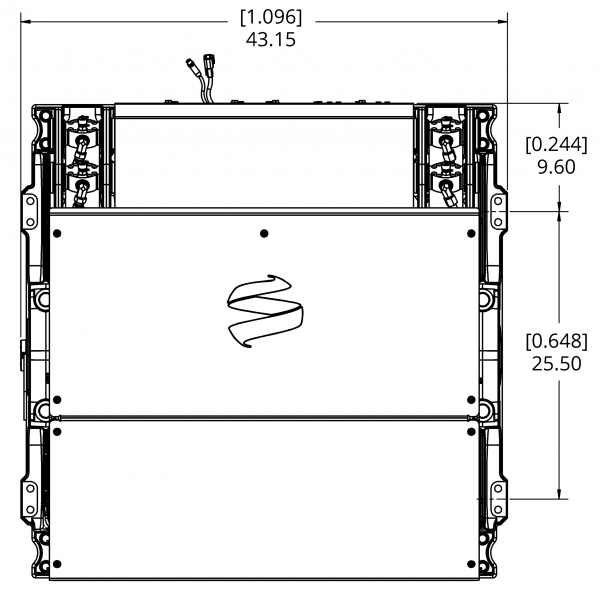

Drawings
