SEAKEEPER 2

~30'-36'

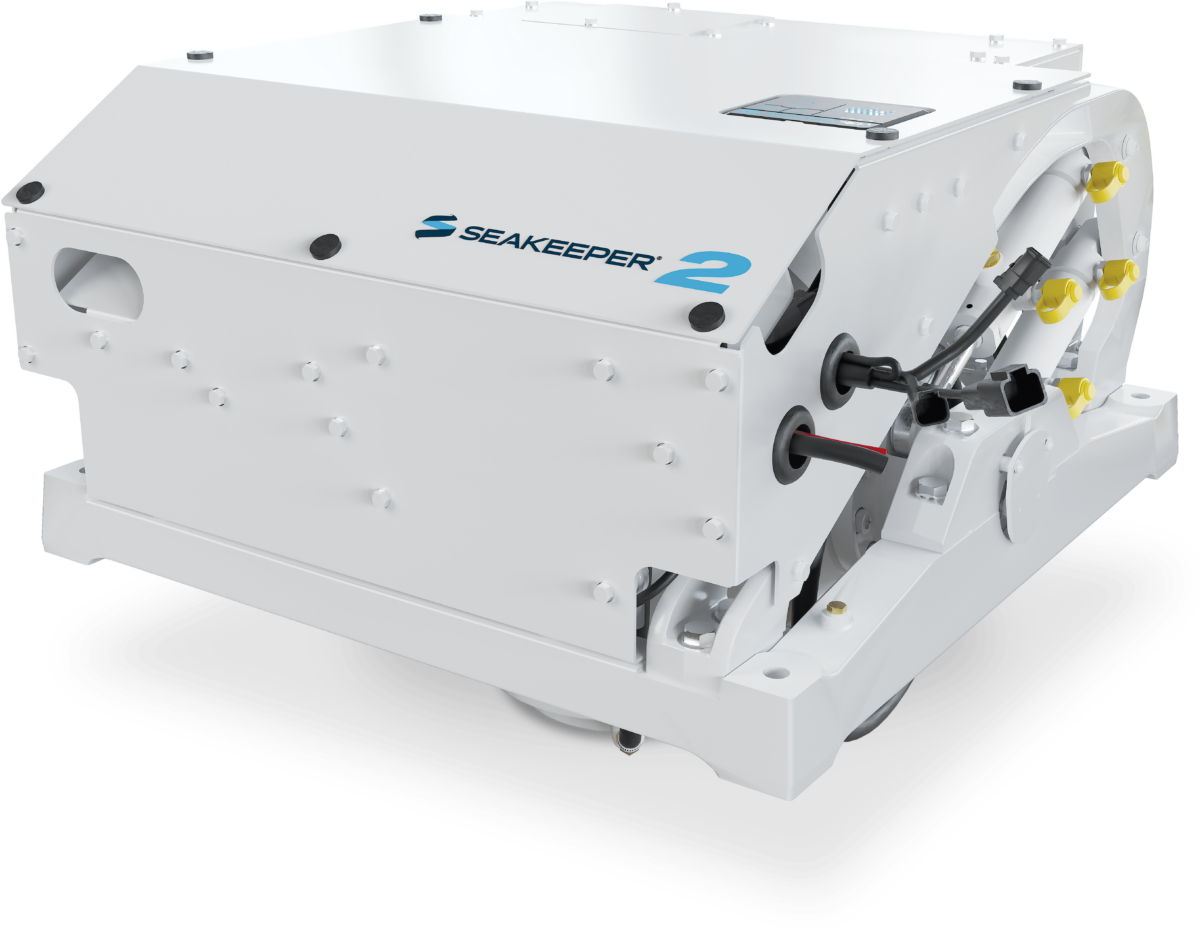

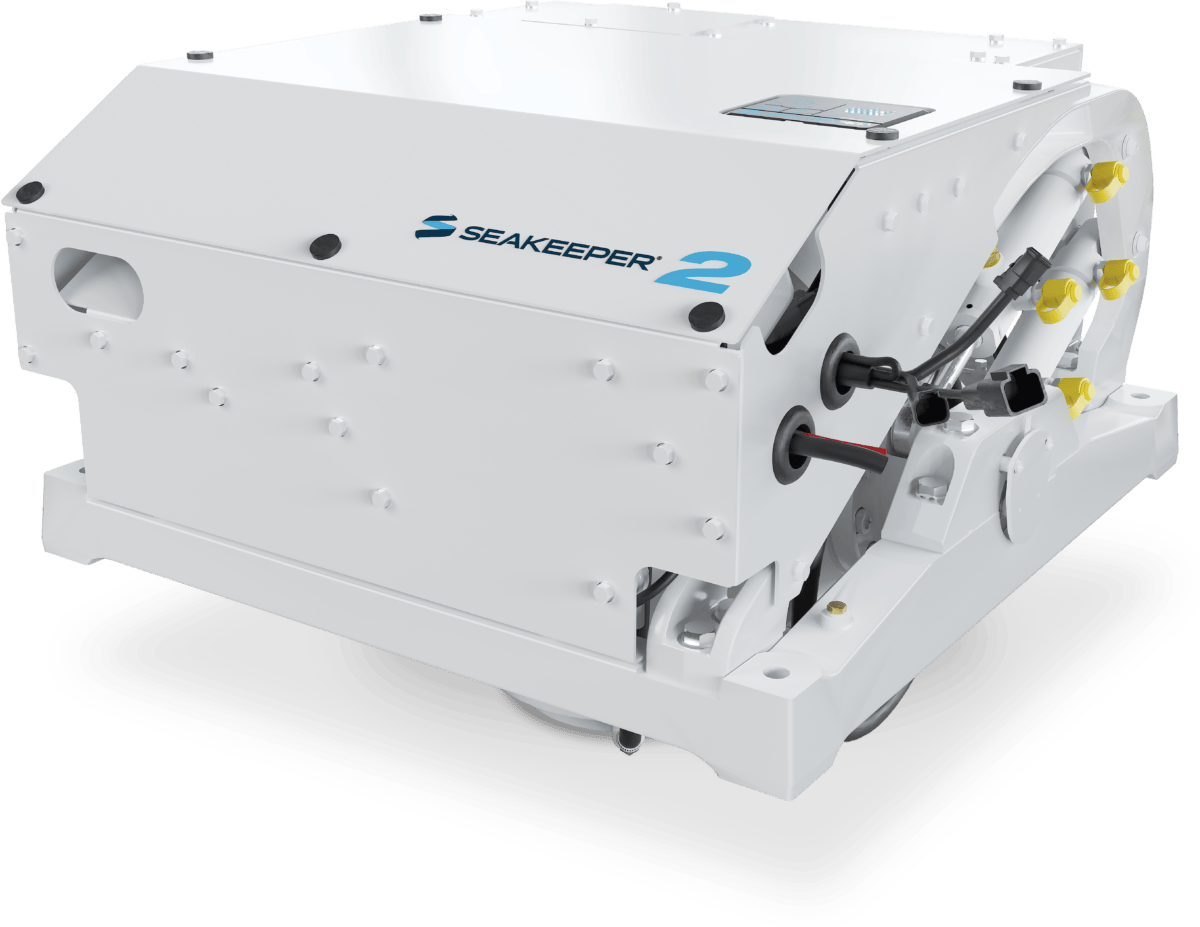

Seakeeper 2
× Popup Image


Description

The groundbreaking Seakeeper 3 was made even smaller. 25% lighter and 20% smaller to be exact. Specially designed for boats approximately ~30-36 feet, the Seakeeper 2 eliminates up to 95% of boat roll. Now even more people will be able to enjoy their time out on the water.


Specifications

  • Weight: 414 lbs (188 kg)
  • Brand: Seakeeper
  • Dimensions: 25.5 L x 24.6 W x 20.4 H (inches)
    0.648 L x 0.625 W x 0.518 H (meters)
  • Innovative Cooling System: Patented cooling enables higher flywheel speeds for maximum performance in a compact, lightweight design.
  • Vacuum Sealed: Vacuum encapsulation allows faster spin, reduced weight and power use, while protecting core components.
  • Active Control: Actively manages gyro torque for effective stabilization at all speeds and sea conditions.
  • Small & Lightweight: Weighs only a small fraction of the boat’s displacement.
  • Eliminate Boat Roll: Eliminates up to 95% of boat roll, reducing fatigue, anxiety, and seasickness.
  • Flexible & Efficient: Completely internal system, installable virtually anywhere on board.

Intuitive Dash Display

Control your Seakeeper with the push of a button on our new user-friendly dash display. Not only is the display simple to use, but it integrates into your existing dash units for optimal performance.

Additional Specifications

Performance

  • Max Rated Speed: 8,450 RPM
  • Angular Momentum at Max Rated RPM: 3,000 N-M-S
  • Spool-up Time to Max Rated RPM: 50 minutes (8,450 RPM)
  • Spool-up Time to Stabilization: 29 minutes (6,337 RPM)
Power Consumption

  • Spool-Up Power: 900 Watts Max
  • Spool-Up Power Input: 12 VDC @ 75 Amps Max
  • Operating Power: 400–900 Watts (Sea State Dependent)
  • DC Power Input: 12 VDC @ 33–75 Amps
  • Control Power: 125 Watts
  • Control Power Input: 12 VDC @ 15 Amps Max
  • Over Current Protection (Pump Rating): 12 VDC @ 15 Amps Max
Dimensions & Environment

  • Weight: 550 lbs (249 kg)
  • Envelope Dimensions: 26.8 L × 27.0 W × 23.1 H (Inches)
  • Envelope Dimensions: 0.680 L × 0.688 W × 0.587 H (Meters)
  • Noise Output: ~72 dB at 1 meter
  • Seawater Supply to Heat Exchanger: 2 GPM (7.6 LPM) Min
  • Seawater Supply to Heat Exchanger: 6 GPM (22.7 LPM) Max
  • Ambient Air Temperature: 32° – 140° F (0° – 60° C)
