Seakeeper 40

~85'-110'

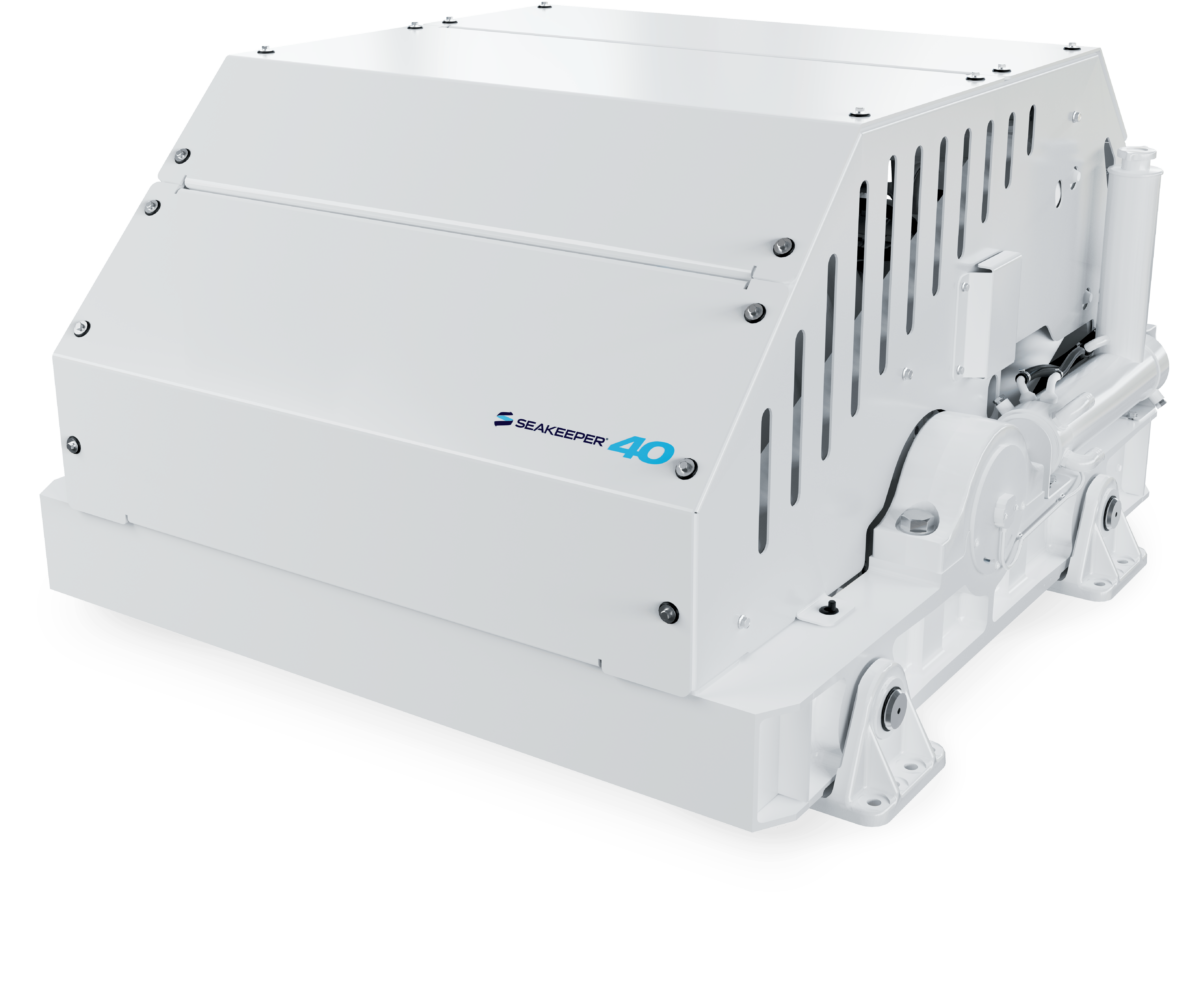

Seakeeper 40
× Popup Image

Description

The Seakeeper 40 is designed to eliminate up to 95% of boat roll on boats 85 feet and up (up to 115 tons) and now features field replaceable bearings (FRB). Engineered from the previous Seakeeper 35 model, we've improved performance without sacrificing power, space, or weight. Multiple units can be fitted for larger boats.


Specifications

  • Weight: 4,074 lbs (1,848 kg)
  • Dimensions: 54.3 L x 55.9 W x 40.6 H (inches)
    1.38 L x 1.42 W x 1.04 H (meters)
  • Innovative Cooling System: Patented cooling enables higher flywheel speeds for maximum performance in a compact, lightweight design.
  • Vacuum Sealed: Vacuum encapsulation allows faster spin, reduced weight and power use, while protecting core components.
  • Active Control: Actively manages gyro torque for effective stabilization at all speeds and sea conditions.
  • Small & Lightweight: Weighs only a small fraction of the boat’s displacement.
  • Eliminate Boat Roll: Eliminates up to 95% of boat roll, reducing fatigue, anxiety, and seasickness.
  • Flexible & Efficient: Simple installation, quiet operation, and no generator necessary.

Intuitive Dash Display

Control your Seakeeper with the push of a button on our new user-friendly dash display. Not only is the display simple to use, but it integrates into your existing dash units for optimal performance.

Additional Specifications

Performance

  • Max Rated Speed: 5,150 RPM
  • Angular Momentum at Max Rated RPM: 40,000 N-M-S
  • Spool-up Time to Max Rated RPM: 70 minutes (5,150 RPM)
  • Spool-up Time to Stabilization: 40 minutes (3,863 RPM)
Power Consumption

  • Spool-Up Power: 5,000 Watts
  • Operating Power: 1,900 – 4,400 Watts
  • Operating Power Input: 208–230 VAC @ 30 Amps, 50/60 Hz
  • Control Power: 240 Watts Max
  • Control Power Input: 24 VDC @ 15 Amps Max
  • Seawater Pump Power Input: 24 VDC @ 20 Amps Max
Dimensions & Environment

  • Weight: 4,074 lbs (1,848 kg)
  • Envelope Dimensions: 54.3 L × 55.9 W × 40.6 H (Inches)
  • Envelope Dimensions: 1.38 L × 1.42 W × 1.04 H (Meters)
  • Noise Output: ~73 dB @ 3.3 feet (1 meter)
  • Seawater Supply to Heat Exchanger: 13 GPM (49 LPM) Minimum
  • Seawater Supply to Heat Exchanger: 15 GPM (57 LPM) Maximum
  • Ambient Air Temperature: 32° – 140° F (0° – 60° C)
