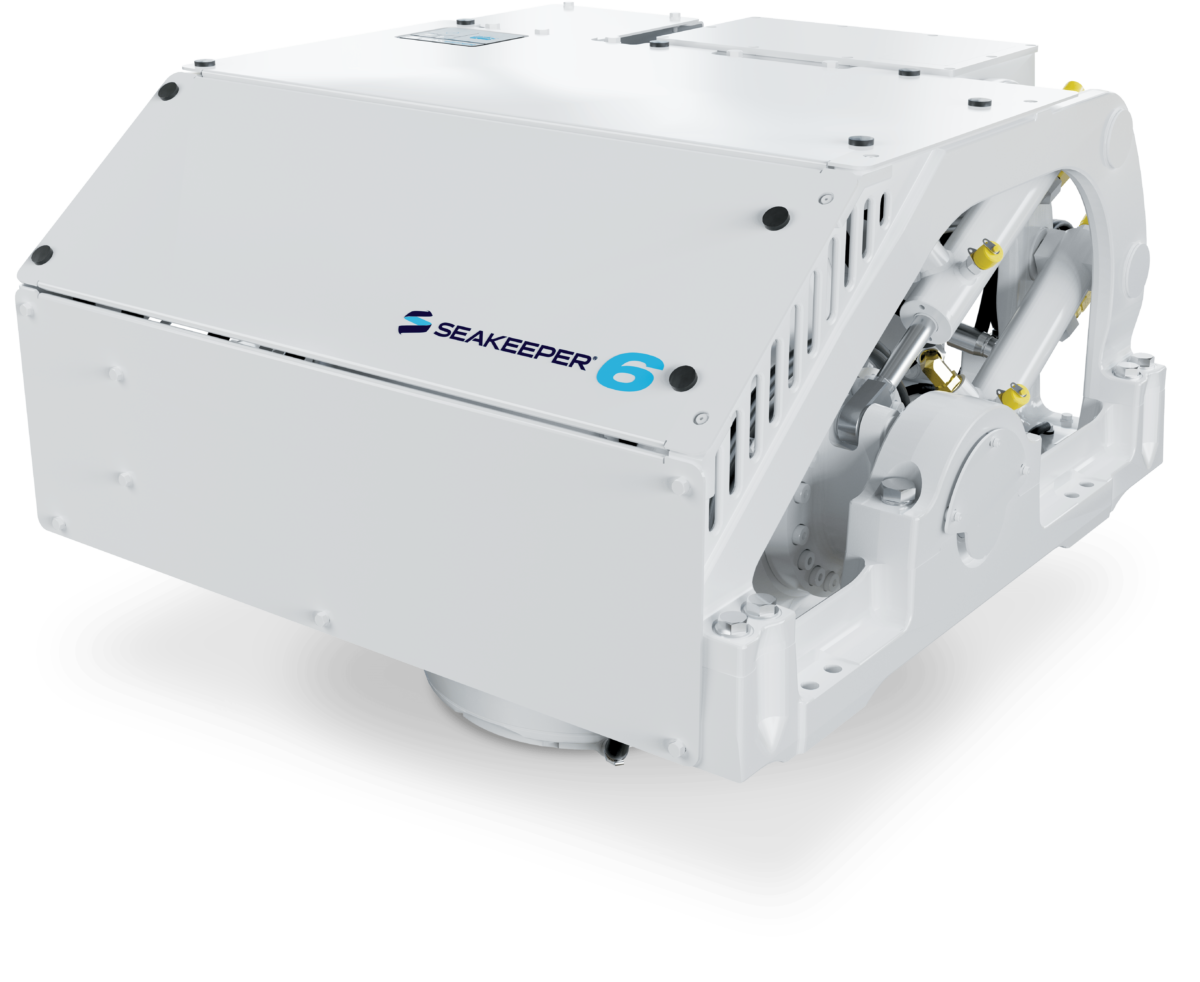

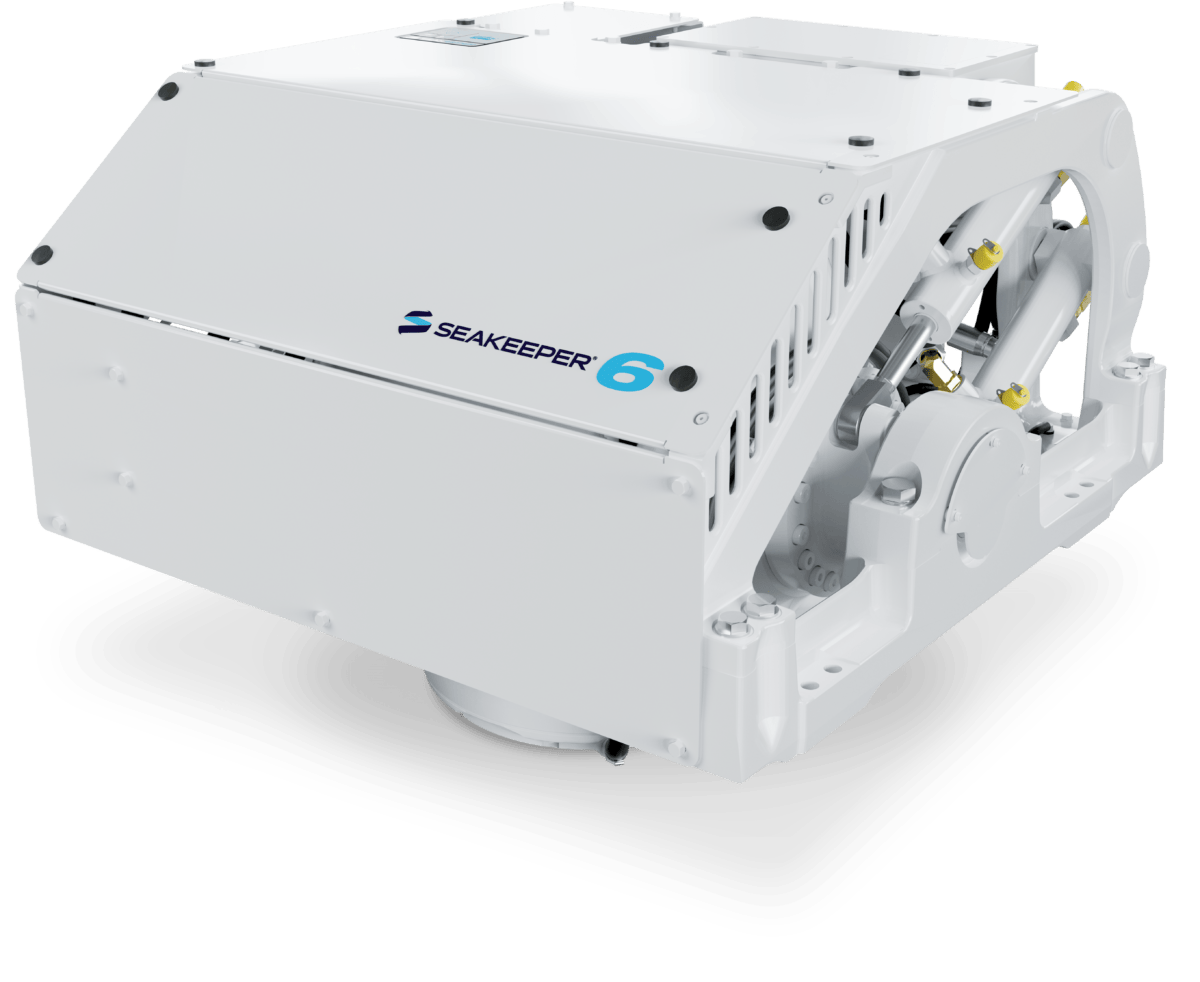

Seakeeper 6

~44'-52'

Description

The Seakeeper 6 packs a punch. Designed to eliminate up to 95% of boat roll on boats up to ~24 tons, vessels ~44-52 feet, the Seakeeper 6 provides 6,000 N-M-S of stabilizing power in a compact, efficient package.

Weight: 870 lbs (395 kg)

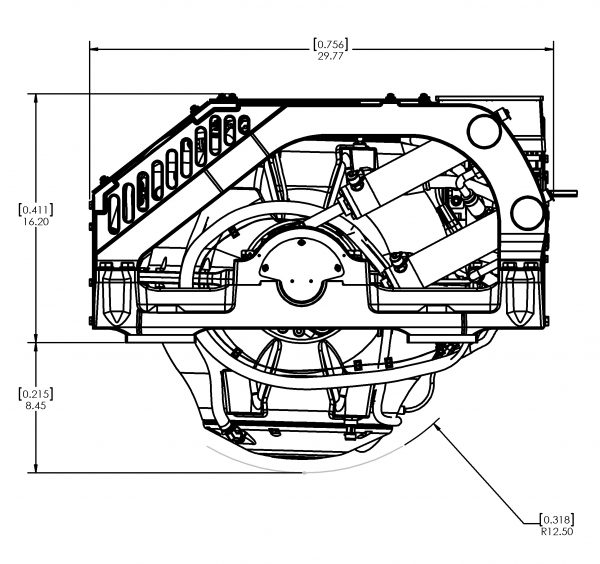

Dimensions: 30.09 L x 29.72 W x 24.47 H (inches)
0.764 L x 0.755 W x 0.621 H (meters)
Innovative Cooling System: Patented cooling allows higher flywheel speeds, delivering maximum performance in a compact, lightweight system.
Vacuum Sealed: Vacuum encapsulation enables faster spin speeds while reducing weight and power consumption, and protecting critical components.
Active Control: Actively optimizes gyro torque to deliver consistent stabilization at all speeds and in all sea conditions.
Small & Lightweight: Seakeeper weighs only a small fraction of the boat's displacement
Eliminate Boat Roll: Eliminates up to 95% of boat roll, reducing fatigue, anxiety, and seasickness.
Flexible & Efficient: Fully internal design allows installation virtually anywhere, unlike traditional fin systems.

Intuitive Dash Display

Control your Seakeeper with the push of a button on our new user-friendly dash display. Not only is the display simple to use, but it integrates into your existing dash units for optimal performance.

Additional Specifications

Performance

Max Rated Speed: 9,700 RPM
Angular Momentum at Max Rated RPM: 6,000 N-M-S
Spool-up Time to Max Rated RPM: 42 minutes (9,700 RPM)
Spool-up Time to Stabilization: 21 minutes (7,275 RPM)

Power Consumption

Spool-Up Power: 2,300 Watts Max
Operating Power: 1,100–2,300 Watts (Sea State Dependent)
Operating Power Input: 220 VAC @ 20 Amps (50/60 Hz, Single Phase) / 110 VAC @ 30 Amps (50/60 Hz)
Control Power: 125 Watts
Control Power Input: 12 VDC @ 15 Amps Max
Over Current Protection (based on installed pump rating): 12 VDC @ 15 Amps Max
